Vibration Testing & Shock Testing Services

At Austest Laboratories, we ensure your products withstand the impact of real-world movement and handling with certified vibration testing and shock test programs. Our team conducts controlled assessments to simulate road, rail, aerospace and defence handling conditions using an advanced shock testing machine and vibratory test equipment.

Accredited Vibration and Shock Testing Services

We offer accredited vibration testing and shock testing services for small electronic assemblies through to large 19” rack systems. Capabilities include sine, sine-on-random, random-on-sine and Shock Response Spectrum (SRS) assessments for automotive, defence, aerospace, and transport clients.

Vibration and Shock Tables

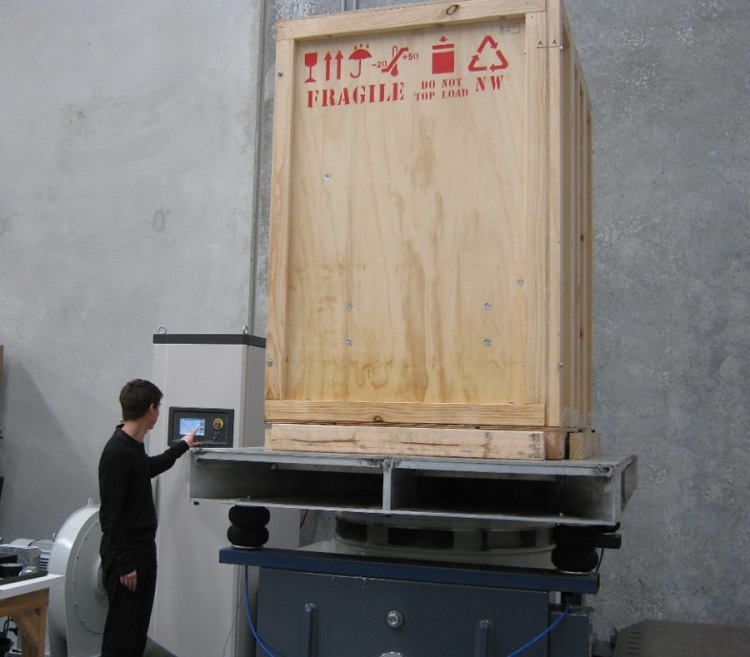

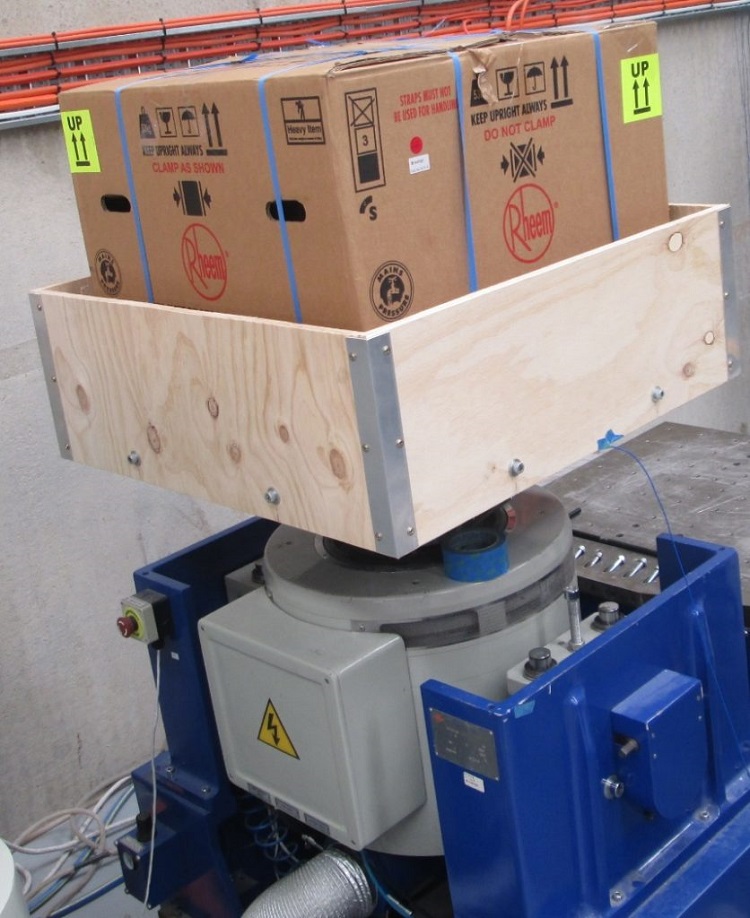

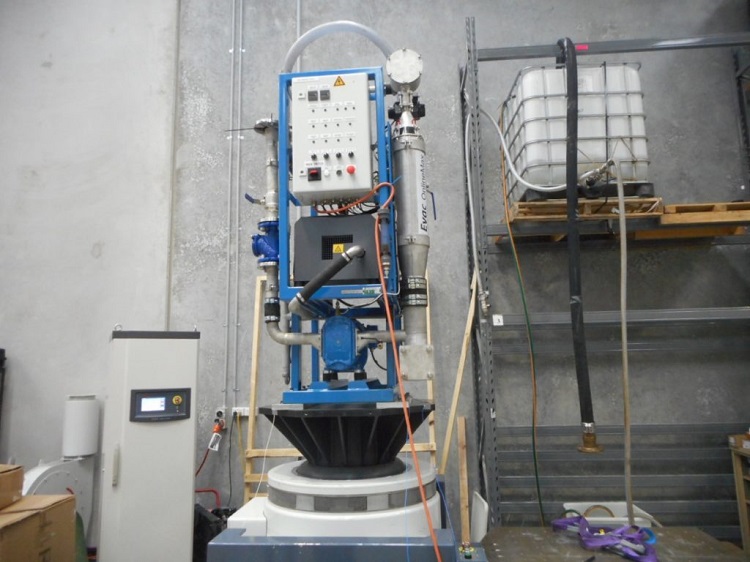

Our modern vibration testing platforms include five electrodynamic systems capable of delivering precise vibration test profiles for components up to 2000kg. These tables simulate transportation, handling and operational conditions across the defence, rail and electronic sectors.

Vibration – up to 60 kN
Shock – 120 kN
1 Hz to 3 kHz
Max. Velocity 180 cm/s
Max. Acceleration 100 g
Max. Displacement 75 mm

Large Shock Machine

At Austest, our large shock testing machine features programmable waveforms that meet military standards, including MIL-STD-202, MIIL-STD-750 and MIL-STD-883. The system supports payloads up to 1,500kg and delivers accurate impact conditions for product qualification in defence and industrial settings.

Max Specimen Weight: 1,150 kgs
Max Specimen Size: Length: 1.52 metres, Width:1.52 metres, Height: No Restriction
Max Acceleration in G’s: 600 (Bare Table)
Generated waveforms fully programmable and comply with typical military specifications including MIL-STD-202, MIL-STD-750, MIL-STD-810 and MIL-STD-883 and include Half Sine, Terminal Peak Sawtooth, Square Wave.

Small Shock Machine

Our small shock testing machine can deliver extreme accelerations from 3 to 30,000g and is ideal for assessing component-level durability under rapid deceleration. This testing method simulates real-world impact and complies with key military specifications, including MIL-STD-202, MIL-STD-750, MIL-STD-810, and MIL-STD-883.

Max Specimen Weight: 100 kgs
Max Specimen Size 40cm x 40 cm, Height: No Restriction
Max Acceleration in G’s: 3 to 30,000 (Bare Table)
Generated waveforms fully programmable and comply with typical military specifications including MIL-STD-202, MIL-STD-750, MIL-STD-810 and MIL-STD-883 and include Half Sine, Terminal Peak Sawtooth, Square Wave.

SRS Shock testing in accordance with RAN Naval Technical Bureau (NTB) speciﬁcations

The following Vibration and Shock standards are covered, including any customer-specific requirements that fall within our test capabilities.

IEC/EN 61373:2010;

IEC/EN 50155:2007;

Test 12.2.11 Vibration, Shock and Bump

IEC/EN/AS 60068-2-6; Vibration

IEC/EN/AS 60068-2-27; Shock

IEC/EN/AS 60068-2-64; Vibration

MIL-STD-202G:

method 201A Vibration
method 204D Vibration, High Frequency
method 213B Shock
method 214A Random Vibration

MIL-STD-167-1A:

type 1, Environmental

MIL-STD-167-1 (ships):

type 1, Environmental

MIL-STD-810G:

method 514.6 Vibration
method 516.6 Shock

MIL-STD-883

ISTA 3A

test blocks 3,4,6-9

ISTA 2A

test blocks 4-6

ASTM D4169-09;

ASTM D4728-01;

IEC60255-21-1 Ed.1;

ISO 16750-3:2012;

DEF STAN 00-35:2006:

test M1 Basic Vibration
test M2 Complete Store Vibration
test M3 Basic Pulse Shock
test M6 Operational Shock Simulation
test M12 Bump

Not sure if we test your product? Just ask

Get In Touch

Why Choose Austest for Vibration Testing and Shock Environmental Testing?

At Austest, we are one of the few Australian laboratories offering accredited vibration testing and shock testing services as part of a full-spectrum environmental testing program. We have invested in specialist equipment, have deep industry knowledge and can simulate real-world conditions with speed and precision.
